The Terasic TR10a-HL Arria 10 GX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 1/2-length form-factor package, the TR10a-HL is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Arria 10 GX, delivering the best system-level integration and flexibility in the industry.

The Arria® 10 GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the TR10a-HL to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the TR10a-HL delivers with six independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the TR10a-HL fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

产品规格

FPGA

• Altera Arria 10 GX FPGA (10AX115N2F45E1SG)

FPGA Configuration

• On-Board USB Blaster II or JTAG header for FPGA programming
• Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory

Memory

• 256MB FLASH
• 6 Independent 550 MHz QDRII+SRAMs, 18-bits data bus and 72Mbit for each ( * )

Communication and Expansion

• Four QSFP+ connectors
• PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
• One 2x5 RS422 expansion header
• One 2x4 GPIO expansion header

Others

• General user input / output:
  • 4 LEDs
  • 1 Bracket LED Array
  • 4 push-buttons
  • 2 DIP switches
• On-Board Clock
  • 50MHz Oscillator
  • Programmable Clock Generator
• System Monitor and Control
  • Temperature sensor
  • Power Monitor
  • Fan control
• Power
  • PCI Express 6-pin power connector, 12V DC Input
  • PCI Express edge connector power
• Mechanical Specification
  • PCI Express standard height and 1/2-length

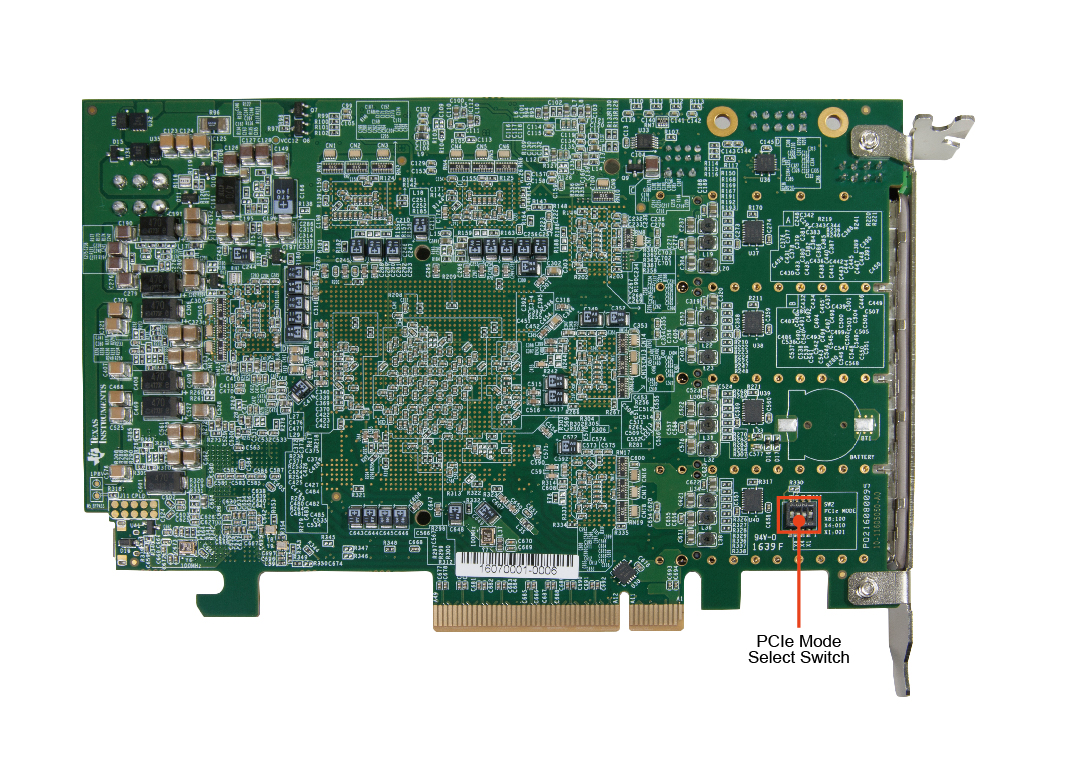

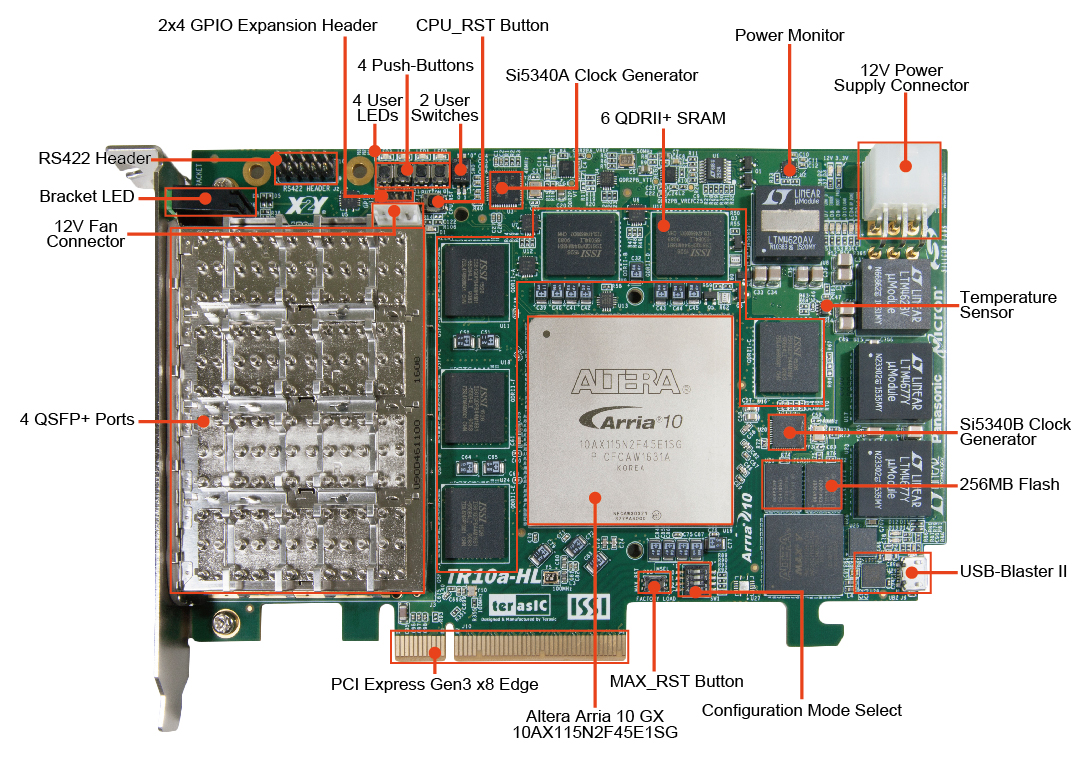

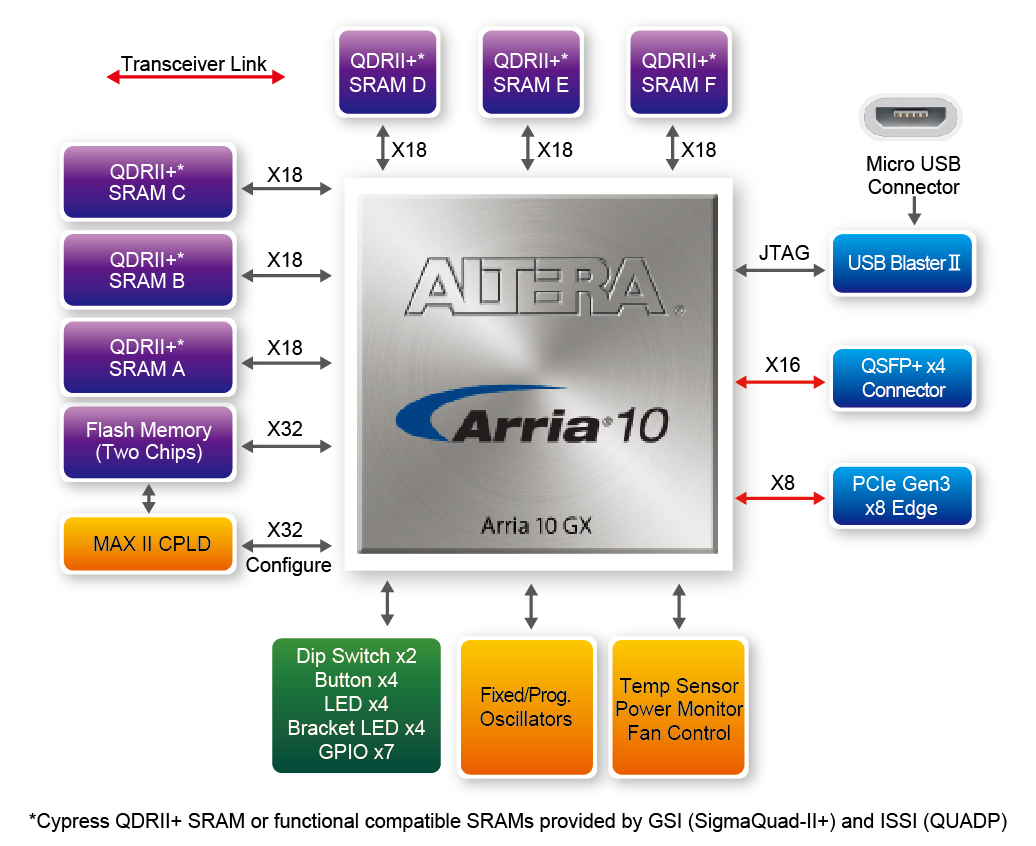

Block Diagram

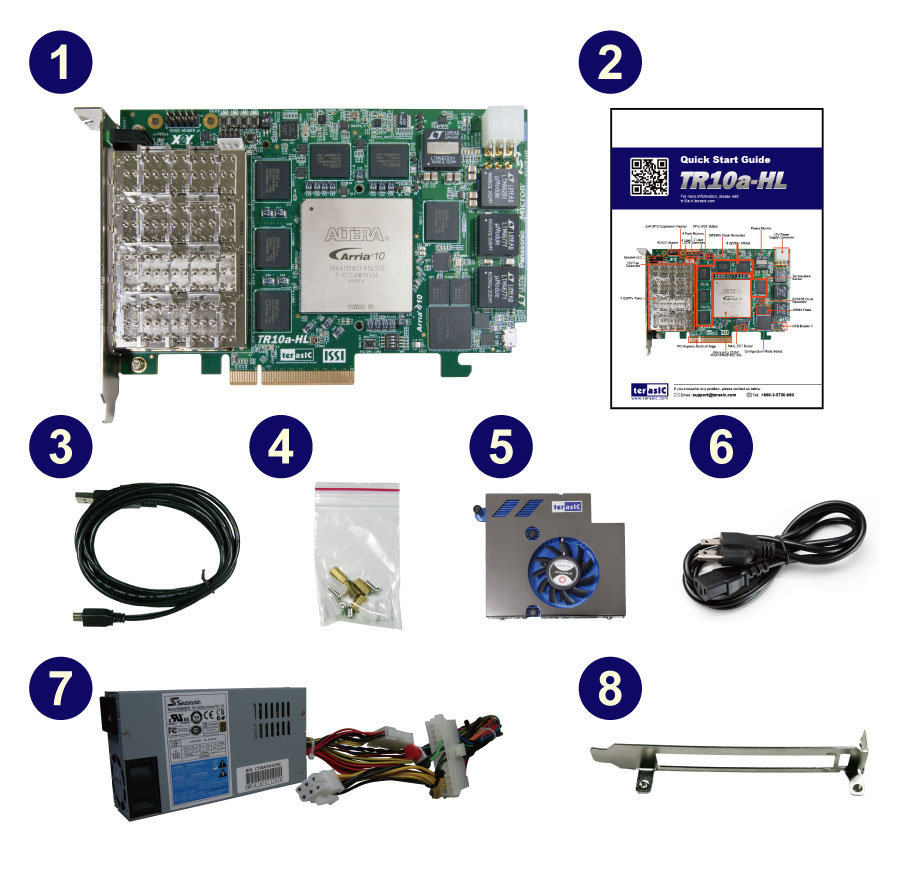

组件配置

• Size：106.65x167.64mm

Documents

标题	版本	档案大小(KB)	新增日期	下载
TR10a-HL User Manual		8286	2016-11-15

CD-ROM
