【TR5-F40W】TR5-F40W Stratix V GX FPGA Development Kit

  • 产品型号: TR5-F40W[P0137]
  • 产品品牌: TERASIC友晶科技
  • 产品规格: Altera Stratix® V GX FPGA (5SGXEA3K2F40C3)
  • 产品价格: 39,450
  • 咨询热线:027-87538900

The Terasic TR5-F40W Stratix V GX FPGA Development Kit provides the ideal hardware platform for developing high-performance and high-bandwidth application. With a standard-height, half-length form-factor package, the TR5-F40W is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Stratix V GX, delivering the best system-level integration and flexibility in the industry. The Stratix® V GX FPGA features 340K logic elements and integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the TR5-F40W to be fully compliant with version 3.0 of SATA, version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 10G SFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. An HSMC expansion port also allows users to connect custom daughter cards such as those found on cards.terasic.com. The feature-set of the TR5-F40W fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

产品规格

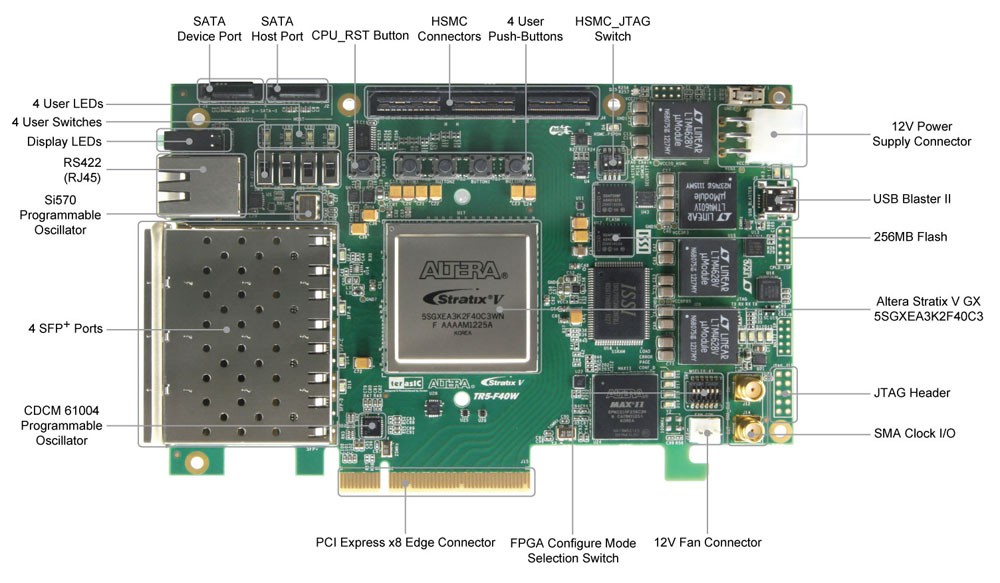

The TR5-F40W Board

Altera Stratix® V GX FPGA (5SGXEA3K2F40C3)

  • On-Board USB Blaster II or JTAG header for FPGA programming
  • Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory

General user input / output:

  • 4 LEDs
  • 1 LED Array
  • 4 push-buttons
  • 4 slide switches

On-Board Clock

  • 50MHz Oscillator
  • Programmable oscillators Si570 and CDCM61004

Memory

  • SSRAM
  • FLASH

Communication Ports

  • Four SFP+ connectors
  • One SATA host port
  • One SATA device port
  • PCI Express (PCIe) x8 edge connector
  • One RS422 transceiver with RJ45 connector
  • One HSMC Connector (voltage levels: 2.5/1.8/1.5V)

System Monitor and Control

  • Temperature sensor
  • Fan control

Power

  • PCI Express 6-pin power connector, 12V DC Input
  • PCI Express edge connector power

Mechanical Specification

  • PCI Express standard height and half-length

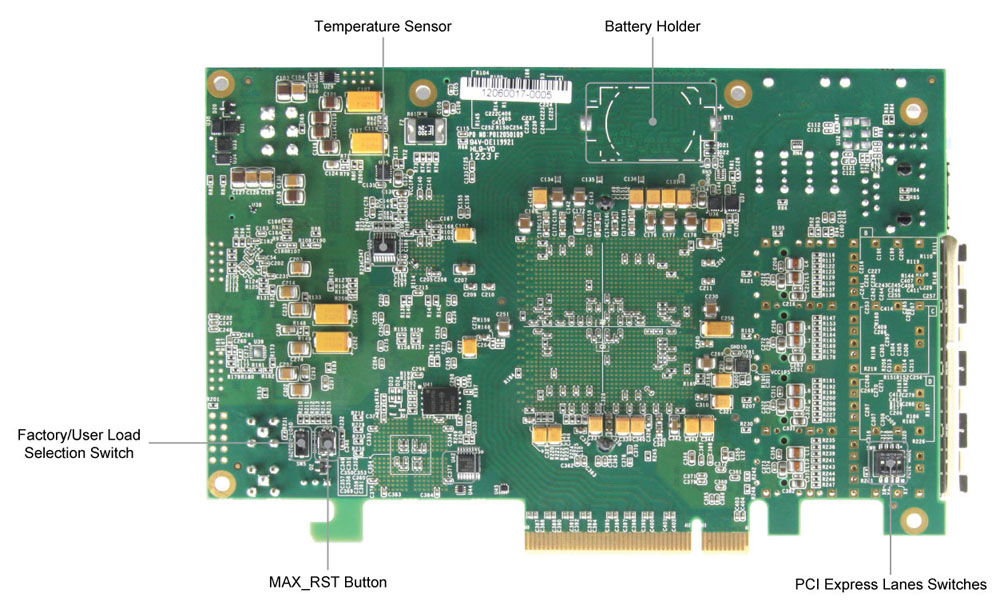

组件配置

TR5-F40W



TR5-F40W

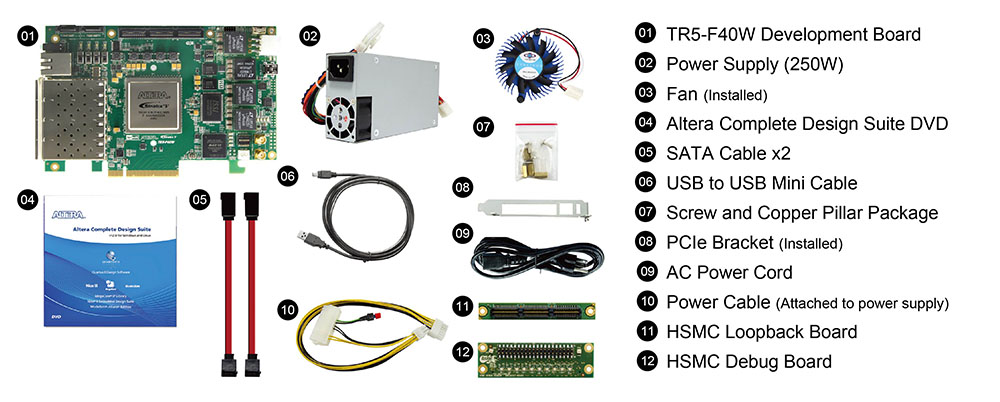

包装内容





Quartus design software license is not included in this kit.

Documents

标题 版本 档案大小(KB) 新增日期 下载
TR5-F40W User Manual   7217 2014-09-01

CD-ROM

标题 版本 档案大小(KB) 新增日期 下载
TR5-F40W CD-ROM (Using Quartus 14.0) 1.1.1   2014-10-31
