【DE5-Net】DE5-Net FPGA Development Kit

  • 产品型号: DE5-Net-QDRII+500[P0122]/DE5-Net-550[P0205]
  • 产品品牌: TERASIC友晶科技
  • 产品规格: Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
  • 产品价格: 65,600元/70,400元
  • 咨询热线:027-87538900

The Terasic DE5-Net Stratix V GX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 3/4-length form-factor package, the DE5-Net is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Stratix V GX, delivering the best system-level integration and flexibility in the industry.

The Stratix® V GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the DE5-Net to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 10G SFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the DE5-Net delivers with two independent banks of DDR3 SO-DIMM RAM, four independent banks of Cypress QDRII+ SRAM or functional compatible SRAMS provided by GSI and ISSI, high-speed parallel flash memory, and four SATA ports. The feature-set of the DE5-Net fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

产品规格


FPGA
Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
FPGA Configuration
On-Board USB Blaster II or JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory

Memory
Two Independent DDR3 SODIMM Socket, Up to 8GB 800 MHz or 4GB 1066 MHz for each socket
Four Independent 550MHz SRAM, 18-bits data bus and 72Mbit for each
256MB FLASH

Communication Ports
Four SFP+ connectors
PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
One RS422 expansion header

General user input / output
4 LEDs
1 LED Array
4 push-buttons
4 slide switches
2 seven-segment displays
SMA clock input / output

On-Board Clock
50MHz Oscillator
Programmable oscillators Si570, CDCM61001 and CDCM61004

System Monitor and Control
Temperature sensor
Fan control

Power
PCI Express 6-pin power connector, 12V DC Input
PCI Express edge connector power

Mechanical Specification
PCI Express standard height and 3/4-length

Block Diagram

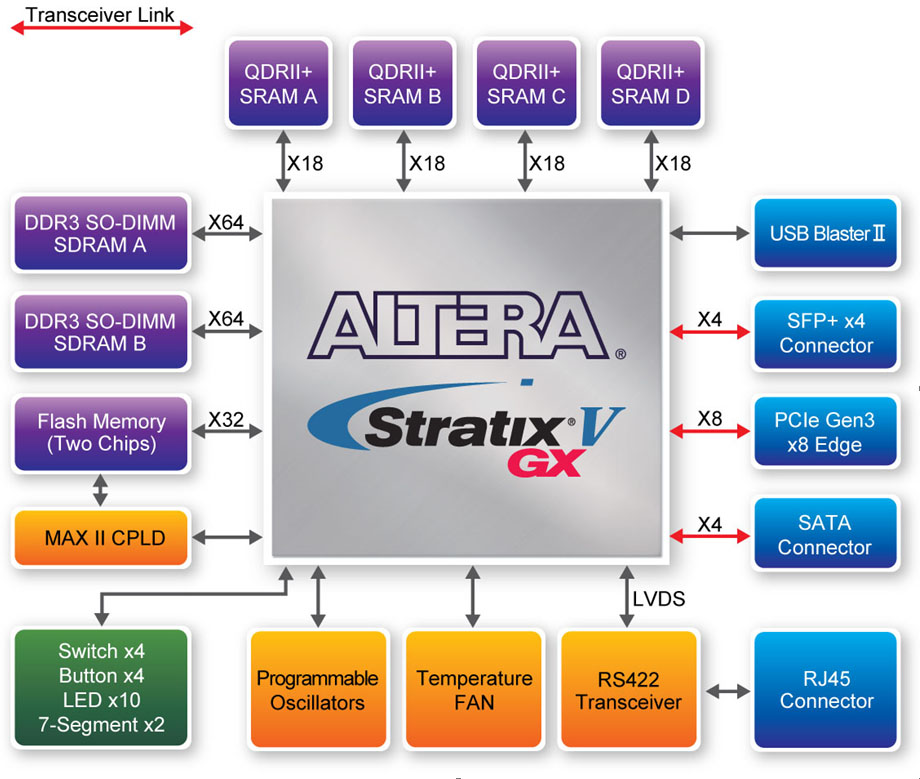

DE5-Net Block Diagram

组件配置

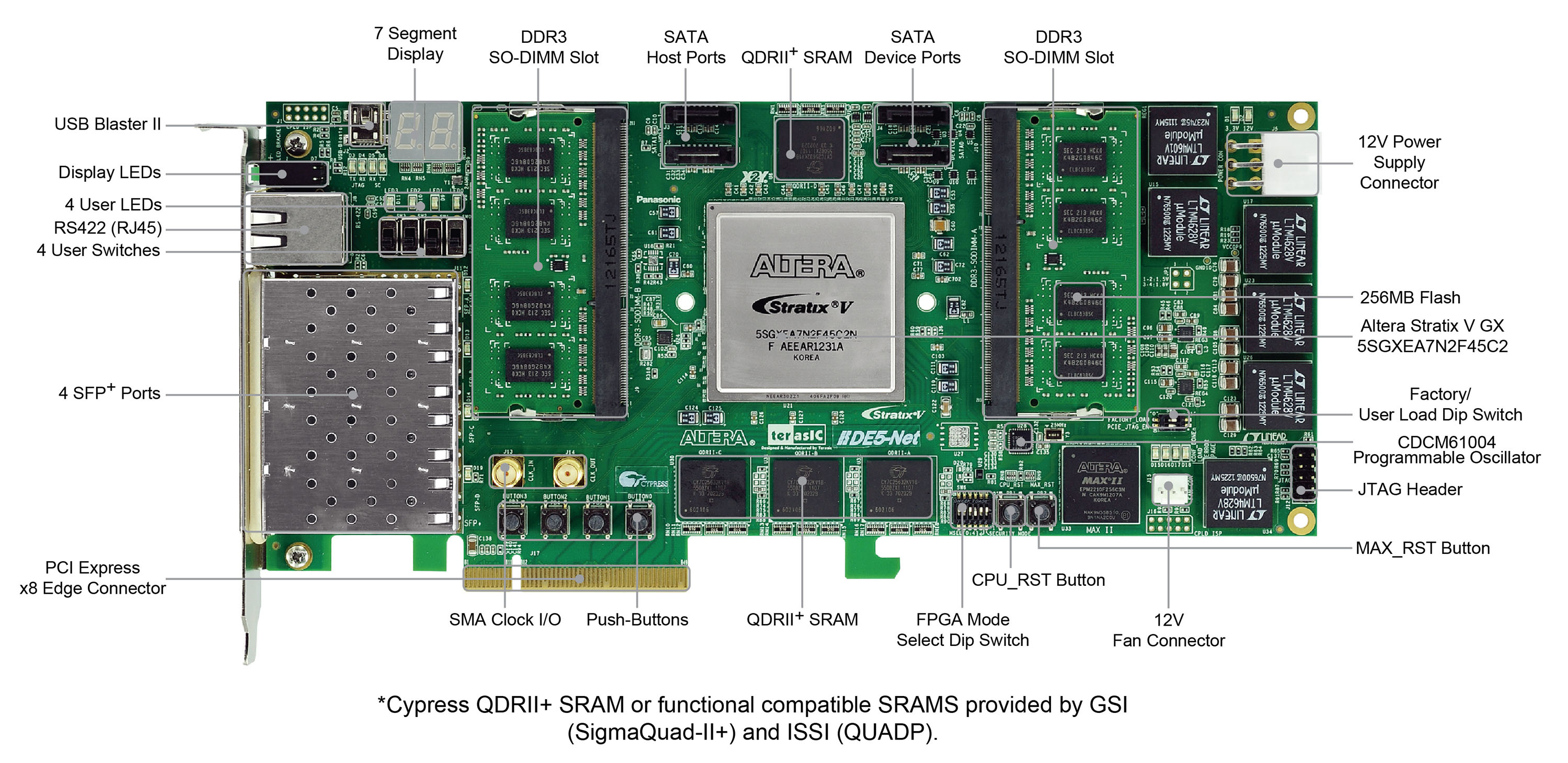

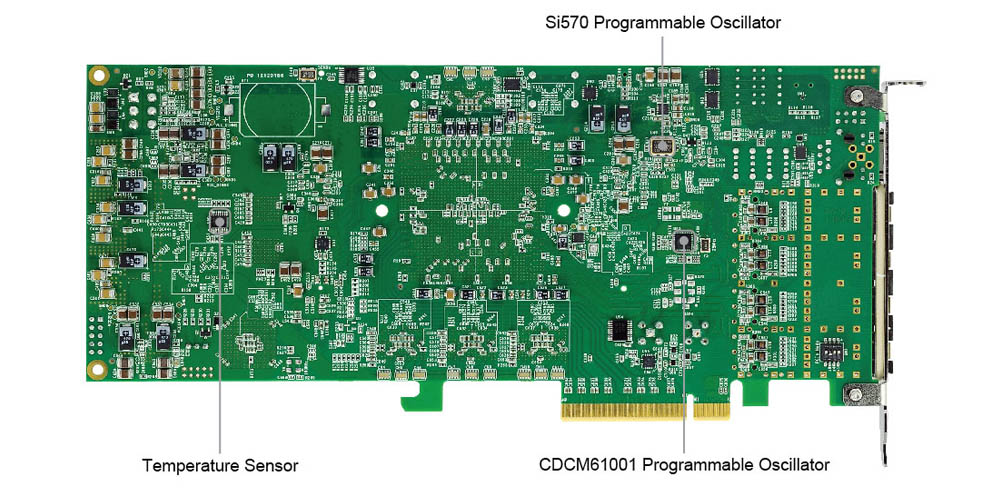

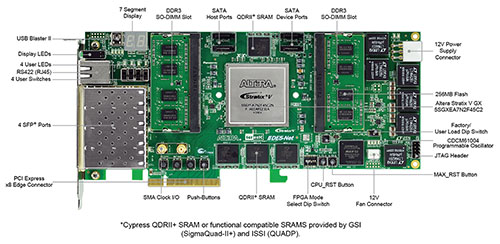

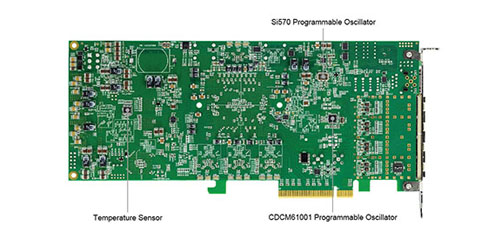

DE5-Net LayoutDE5-Net Layout



  • Size : 239 x 107 mm

包装内容

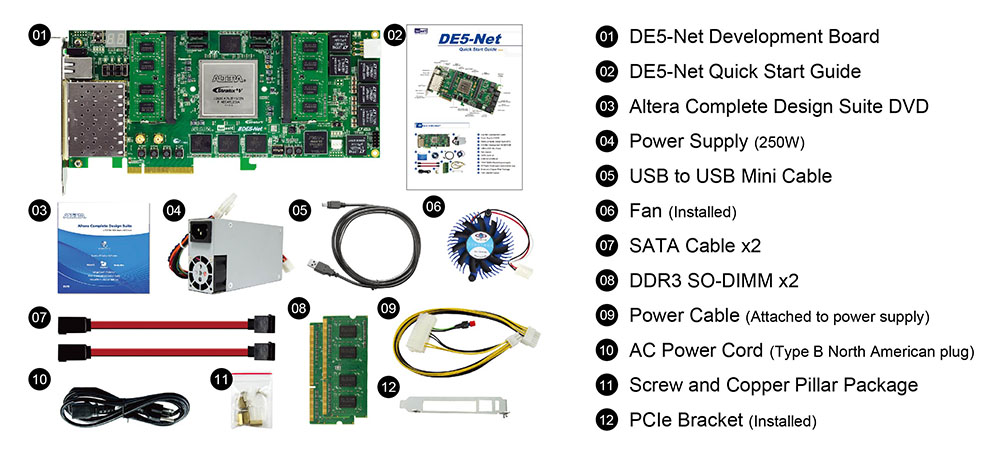

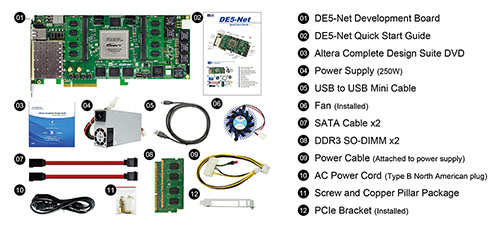

DE5-Net Kit Contents

  • Quartus design software license is not included in this kit.

Document

标题 版本 档案大小(KB) 新增日期 下载
DE5-Net User Manual 1.03 6449 2016-01-07

CD-ROM

标题 版本 档案大小(KB) 新增日期 下载
DE5-Net System CD 1.3.0   2016-01-07


BSP(Board Support Package) for Altera SDK OpenCL 16.0

标题 版本 档案大小(KB) 新增日期 下载
DE5-Net openCL BSP for Windows     2016-12-20

OpenCL User Manual   2174 2016-11-01
DE5-Net openCL BSP for Linux     2016-11-01


BSP (Board Support Package) for Altera SDK OpenCL 14.0/14.1 - Network Platform

标题 版本 档案大小(KB) 新增日期 下载
DE5-Net NETWORK BSP for Linux     2016-08-11
DE5-Net NETWORK BSP for Windows     2016-08-11
User Manual for OpenCL - Network Platform   2703 2016-08-11

BSP(Board Support Package) for Altera SDK OpenCL 14.0/14.1

标题 版本 档案大小(KB) 新增日期 下载
DE5-Net openCL BSP for Windows     2015-05-05

OpenCL User Manual 1.0 2500 2014-11-11
DE5-Net openCL BSP for Linux     2014-11-11


BSP(Board Support Package) for Altera SDK OpenCL 13.1

标题 版本 档案大小(KB) 新增日期 下载
OpenCL User Manual   3009 2014-11-11
DE5-Net openCL BSP for Windows     2014-02-07

DE5-Net openCL BSP for Linux     2014-02-07
