【COMM-HSMC】TERASIC友晶COMM-HSMC
- 产品型号: COMM-HSMC
 - 产品品牌: TERASIC友晶科技/Intel FPGA
 - 产品规格: RS-485 x2 ;CAN x2
 - 产品价格: 欢迎咨询采购,量多优惠多,提供完善的售后保障和支持!

- 咨询热线:027-87538900

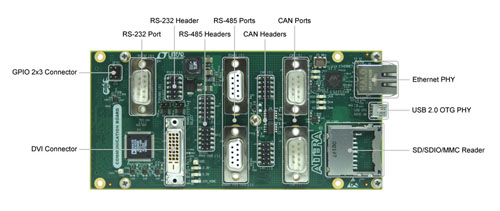

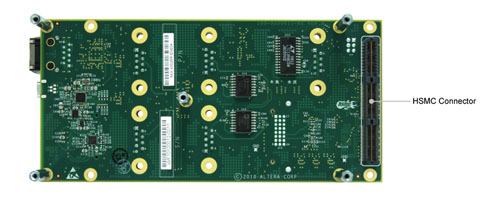

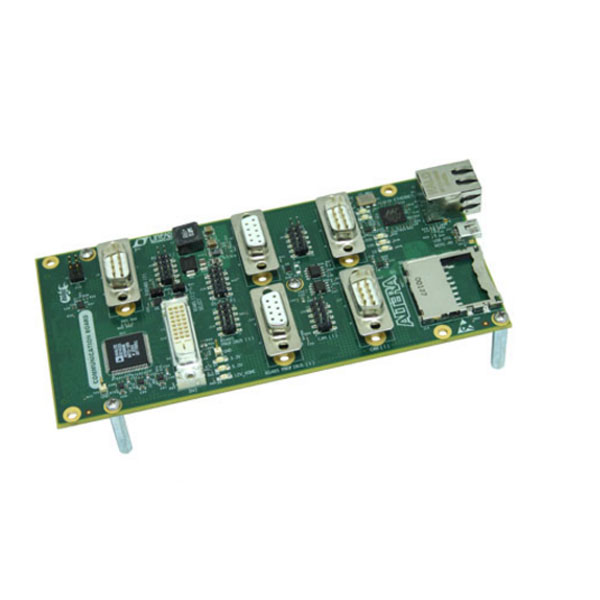

The HSMC Communication card adds key interfaces to support a wide range of industrial, image processing, scientific and measurement requirements. From 10/100/1000 Ethernet PHY, to CAN, RS232, RS485, the HSMC Communication card can quickly get you started with your designs. Also included is a digital DVI transmitter port to display FPGA driven video content. The card allows users to evaluate included interfaces with any HSMC interface host boards.

HSMC Communication Card:

		Features

		-
			RGMII Ethernet PHY, RJ-45 connector

		-
			USB 2.0 OTG PHY with ULPI

		-
			RS-485 x2 with 2x5 0.1* header

		-
			CAN x2 with DB9 connector

		-
			GPIO with 2x3 0.1* connector



		Block Diagram


HSMC Communication Card:Features
- RGMII Ethernet PHY, RJ-45 connector
 - USB 2.0 OTG PHY with ULPI
 - RS-485 x2 with 2x5 0.1* header
 - CAN x2 with DB9 connector
 - GPIO with 2x3 0.1* connector

Block Diagram


 Connect DE3


 Connect DE4


 Connect DE2-115




 Connect A2GX


| No | 产品名称 | 售价(RMB) |
|---|---|---|
| 1. |
				[COMM-HSMC]HSMC COMMUNICATION BOARD

					产品编号: P0078
			  重量: 500g |
			xxx |





 重量: 500g
